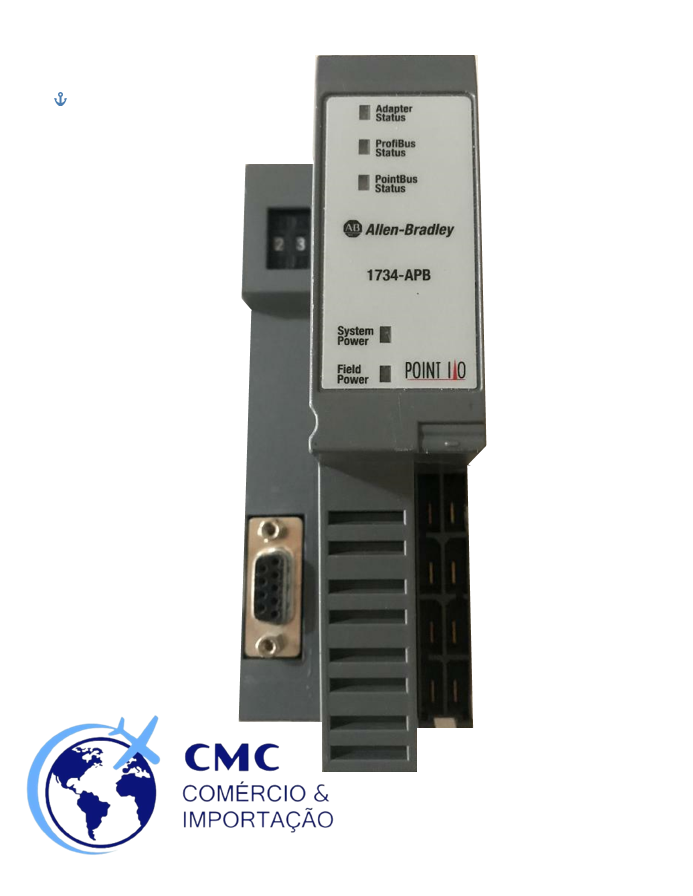

Product Type: PROFIBUS DP Network Adapter
Mounting: DIN Rail / Enclosure type rating: None (open-style)
Relative humidity: 5...95% noncondensing / Product Series: 1734* I/O Communication Interfaces
Input voltage, nom: 24V DC / Ut voltage range: 10...28.8V DC
Field side power requirements: 400 mA @ 24V DC (+20% = 28.8V DC)
Inrush current: 6 A for 10 ms / POINTBus current: 1000 mA @ 5V DC 5% (4.755.25V)
Power consumption at 24V: 8.0 W / Power dissipation, max.: 2.8 W @ 28.8V
Input overvoltage protection: Reverse polarity protected
Interruption: Output voltage will stay within specifications when input drops out for 10 ms @ 10V with max load
Operating shock: 30 g / Nonoperating shock: 50 g / Vibration: 5 g @ 10...500Hz
