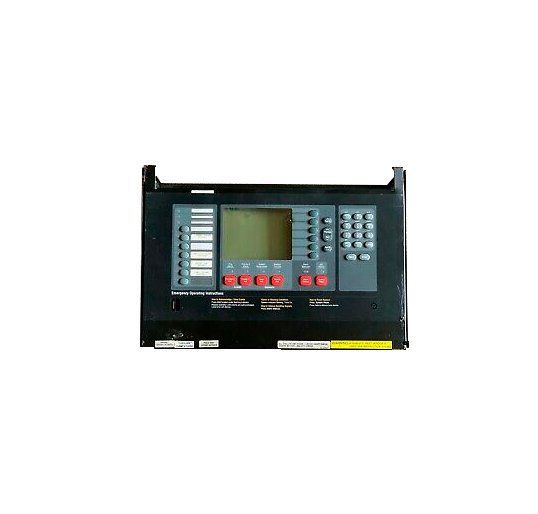

4100-7153 SIMPLEX, 4100U/ES INFOALARM UI UPGRADE.

4100-7153 Simplex, InfoAlarm Command Centers for 4100ES fire alarm systems provide a large display with extended information content, dual language support including 2 byte character languages, and an intuitive control key interface per the following:

  • Up to 10 InfoAlarm Command Centers are supported per 4100ES/4100U control panel; able to allow one InfoAlarm Command Center to take-control and to designate access levels for interfaces not in-control; LEDs can be programmed for in-control status indications.
  • Menu-driven format conveniently prompts operators for the next action required.
  • Key controls are provided to select the highlighted entry, load next screen of information, or jump to top or bottom of activity lists.
  • Direct point call up displays individual points alphabetically and then homes in on the logical choice as more point information is entered.
  • A Site Plan bitmap can be displayed for reference; icons can be added to indicate system status.
  • Up to 50 custom point detail messages can be generated.
  • Date formats are either MM/DD/YY or DD/MM/YY.
  • Time formats are either 24 hour or 12 hour with AM/PM.
  • System Normal screen supports a gray scale bitmap (watermark) for location name, company logo, or site plan.

Compatible with Simplex ES Net or 4120 Fire Alarm Networks

Multi-line expanded content display interface for Simplex® 4100ES Series fire alarm control panels, available with the following products:

  • Fire alarm control panels (stand-alone or networked) including Redundant CPU options (Software Revision 12 or higher is required).
  • Network Display Units (NDU) with support for up to 12,000 points.
  • Remote Annunciator panels and models that mount in a dedicated cabinet (4100ES and 4100U control panels support Remote InfoAlarm Command Centers independent of host panel display type).
  • Upgrade kits are available for legacy 4100 (1000 pt, 4100+ systems) and 4100ES and 4100U standard panels.
  • UL listed to Standard 864.
