4603-9101 SIMPLEX

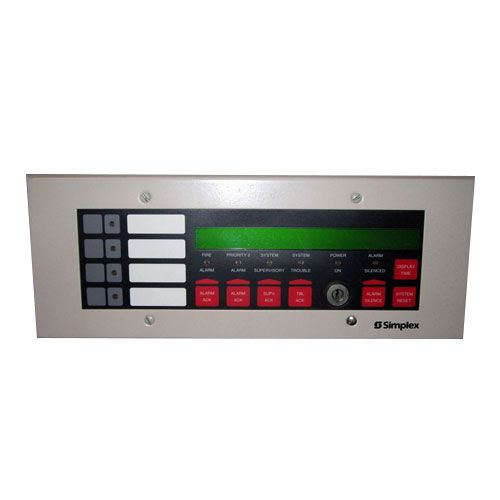

4603-9101 Simplex LCD Annunciator.

4603-9101 Simplex, Remote Control, and Annunciation are provided using an 80 character, backlit, alphanumeric display. Information is presented in the clear, descriptive English language and includes Point Status (alarm, trouble, etc.); Alarm Type (smoke detector, manual station, etc.); Number of System Alarms, Supervisory Conditions, and Trouble Conditions; and a Custom Location Label.

Wiring.

A single twisted wire pair provides serial RUI communications that also supports other Simplex serial annunciators on the same wire pair.

Multiple Indications.

Alarm, Supervisory, and Trouble conditions are also indicated by dedicated LEDs and a tone-alert audible sounder. Each condition has a dedicated acknowledge push-button switch that silences the tone-alert but leaves the LED on until all conditions in that category are restored to normal. Switch operation is either globally or individually acknowledgeable, determined by the control panel operation.

4603-9101 Simplex Remote LCD annunciator for use with Simplex® model:

• 4100ES and 4100U fire alarm control panels.
• Legacy products 4100, 4120, and 4020 fire alarm control panels, and 4100/4120 Universal Transponders.

Information display features:

• Maintained display of first alarm is available with 4100ES and with 4100U at software revision 11.11 or higher.
• Wide viewing angle, super-twist LCD technology with green LED backlighting.
• Two lines of 40 characters each.
• LED status indicators.
• During battery backup, backlighting is disabled until there is a switch activity.

4603-9101 Simplex controls include:

• Switches for system acknowledge, alarm silence, and system reset.
• Four programmable control switches.
• Lamp/LCD test.

Wiring information:

• RUI (Remote Unit Interface) communications require a single twisted wire pair.
• Separate wiring is required for 24 VDC control panel power.

Repeated operation of the appropriate acknowledge switch will scroll the LCD display showing activity in the sequence of occurrence. The tone-alert also pulses to indicate the operation of any of the push-button switches.

Consult local code requirements for guidance in determining applications and locations of the 4603-9101 LCD annunciator.

UL Listed to Standard 864
