4605-7401 SIMPLEX

4605-7401 SIMPLEX

Código: B8ADQ5RXA Marca:

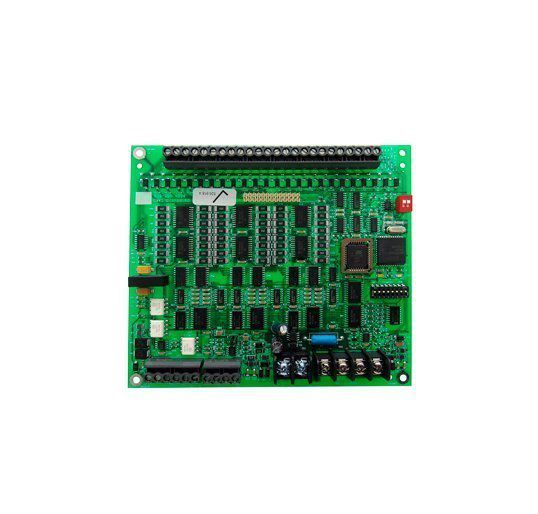

4605-7401 SIMPLEX, 24 POINT I/O MODULE (N2).

The 4605 Series of I/O modules provide a flexible remote interface for graphic annunciators, HVAC monitoring and control, output bypass control, utility door monitoring, and emergency call switches. Each I/O point can be selected as an input or output as determined by local requirements.

Programmable input/output module for use with the model 4010 Simplex® addressable fire alarm control panel:

  • 4605 Series Models provides 24 input/output (I/O) points per module with each point selectable as either an input or an output.

Four input switch types are supported:

  • Unsupervised switch connection.
  • Supervised for open to switch circuit.
  • Supervised for open or short to switch circuit.
  • Monitored three position H.O.A. (hand-off-auto).

Monitored switches may be:

  • Normally open (N.O.) or normally closed (N.C.).
  • Momentary or maintained.

Outputs:

  • Rated 24 V at 75 mA each for operation of relays, incandescent lamps, or current limited LEDs.
  • Selectable for continuous on, or slow or fast flash.

Modules communicate with the 4010 control panel using N2 serial communications:

  • Up to six total annunciators are supported
  • Compatible annunciators include the 24 I/O module, the 4606-9101 LCD annunciator, and the 24 LED door mounted annunciator.
  • Communications are provided with extended diagnostics for quick setup and easy maintenance.

4605 Series 24 Point I/O Package availability:

  • Modular package with cabinet, with or without retainer and door, for up to six modules.
  • Plate mounting for up to six modules (for use with cabinet by others).
  • Module only (for expansion, or for use with mounting plate and enclosure by others).

UL listed to Standard 864
