4903-9198 SIMPLEX

4903-9198 SIMPLEX

Código: SN6TGDHFL Marca:

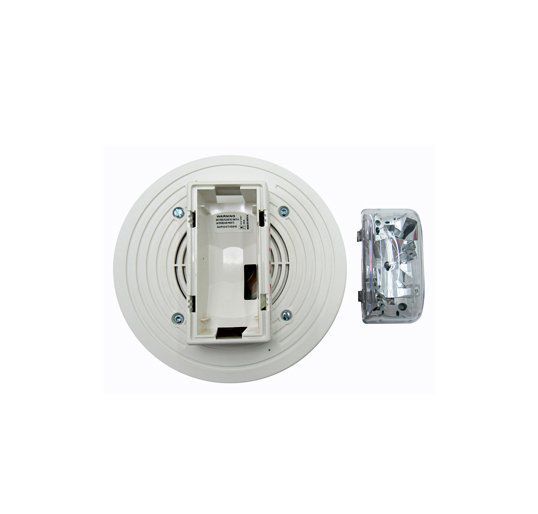

4903-9198 SIMPLEX. TRUEALERT, NON-ADD, 110CD, RND.

4903-9198 Simplex, TrueAlert non-addressable speaker/visible (S/V)notification appliances combine a multi-tapped speaker and a high intensity strobe to provide audio/tone notification and visible notification from the same appliance. Speakers and strobes are wired separately. The speaker is multi-tapped with taps available for either 25 VRMS or 70.7 VRMS and the strobe is selectable for either free-run or synchronized operation.

Audible/visible ceiling mount notification appliance with:

  • Multi-tapped speaker.
  • High intensity xenon strobe, selectable for free-run or synchronized flash.

Audible notification appliance (speaker):

  • High quality voice and tone reproduction with taps for 1/4, 1/2, 1, or 2 W, at 25 or 70.7 VRMS.
  • Speakers are wired separately from strobe wiring.
  • UL listed to Standard 1480.
  • Compliant with NFPA 72, 520 Hz Low Frequency Signal Requirements for Sleeping Areas.

TrueAlert non-addressable visible notification appliance (strobe):

  • 24 VDC operation with switch selection for free-run or synchronized flash rate.
  • UL listed to Standard 1971.
  • Compatible with ADA requirements.
  • Strobe candela rating is clearly indicated on reflector.
  • Rugged, high impact, flame retardant thermoplastic housing.

Synchronized flash rate mode for use with:

  • Synchronization modules for Class B (Style Y) or Class A (Style Z) operation.

Notification appliance design provides:

  • Round housing for ceiling mount in standard electrical boxes.
  • Separate in/out wiring terminals for speaker and strobe.

Strobe Selection
Proper selection of visible notification is dependent on occupancy, location, local codes, and proper applications of: the National Fire Alarm Code (NFPA 72), ANSI A117.1; the appropriate model building code: BOCA, ICBO, or SBCCI; and the application guidelines of the Americans with Disabilities Act (ADA).
