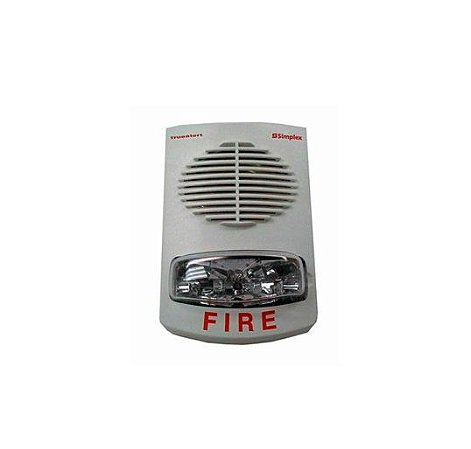

4903-9360 SIMPLEX, S/V 75CD WHITE 25/70V NONADDRE.

4903-9360 Simplex, TrueAlert non-addressable speaker/visible (S/V) notification appliances combine a multi-tapped speaker and a high intensity strobe to provide audio/tone notification and visible notification from the same appliance.

Speaker details:

  • High quality voice and tone reproduction with taps for 1/4, 1/2, 1, or 2 W, at 25 or 70.7 VRMS.
  • Capacitor input for connection to supervised notification appliance circuits.
  • Speakers are wired separately from strobe wiring.
  • Listed to UL 1480; and to ULC S541 with 2 W tap.
  • Compliant with NFPA 72, 520 Hz Low Frequency Signal Requirements for Sleeping Area.

TrueAlert Non-Addressable visible notification appliance (strobe):

  •  24 VDC operation with switch selection for free-run or synchronized flash rate.
  •  Listed to UL 1971 and ULC S526.
  •  Compatible with ADA requirements.
  •  Strobe candela rating is clearly indicated on reflector.
  •  UL listed red wire guard is available for surface or semi-flush mounting

Notification appliance design provides:

  • Flexible, easy, and convenient flush or surface wall box mounting
  •  Separate in/out wiring terminals for speaker and strobe, 18 AWG to 12 AWG

Speakers and strobes are wired separately. The speaker is multi-tapped with taps available for either 25 VRMS or 70.7 VRMS and the strobe is selectable for either free-run or synchronized operation.

Audible/visible notification appliance with multi-tapped speaker and high intensity xenon strobe
