4905-9815 SIMPLEX

4905-9815 SIMPLEX, SMARTSYNC ADAPTER, NON-ADDRESS.

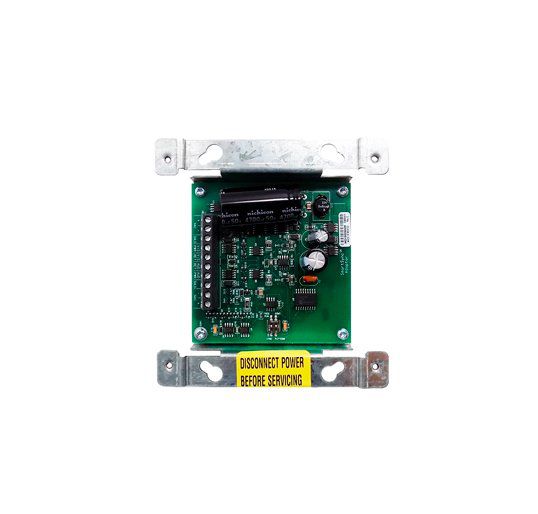

4905-9815 Simplex, Converts a Simplex® SmartSync NAC (notification appliance circuit) into separate 24VDC audible and visible appliance outputs:

• Power and communications are supplied by the SmartSync operation NAC.
• Up to two SmartSync Adapter Modules can be connected to a SmartSync NAC.
• Operation is compatible with SmartSync control from Simplex fire alarm control panels and from 4009 IDNet NAC Extenders.
• Operation modes are: visible and audible appliances both on; or visible appliance only – with activation determined by the connected control panel.
• On-board circuit limits appliance inrush current and provides self-resetting overcurrent protection.
• Wiring to audible and visible appliances is supervised with conventional reverse polarity operation; opens or shorts are reported to the control panel.

Status diagnostics:

• A visible status LED will light if a wiring fault is detected by either of the on-board output notification appliance supervision circuits.

Appliance output ratings:

• Regulated 24 DC appliance power; audible output is rated for up to 30 mA, visible output is rated for up to 180 mA.
• Special Applications appliance ratings; audible output is rated for up to 50 mA, visible output is rated for up to 250 mA.

General mechanical features:

• Mounts in standard 4-11/16” (119 mm) square electrical box.
• Cover plates (required) are available for surface or flush mount, ordered separately.
• Covers provide status LED viewing.
• Screw terminals for wiring connections.

UL listed to Standard 864

Special Notification Requirements.

Standard SmartSync operation notification appliances activate horns and/or strobes in response to commands received from the SmartSync operation control source using a two-wire connection. For applications where appliances other than the standard SmartSync appliances are required, the SmartSync Adapter Module provides a separate audible and visible output controlled by the SmartSync operation control source.

Typical applications are for connection to special weather-proof appliances, appliances with particular sound output characteristics (special bells or chimes), or for connection to appliances that are required to satisfy specific aesthetic requirements.

Maintains SmartSync operation System Advantages.

With the SmartSync Adapter Module, non-SmartSync appliances can be controlled while still benefiting from the SmartSync operation ability to provide separate audible and visible control using a two-wire connection.
