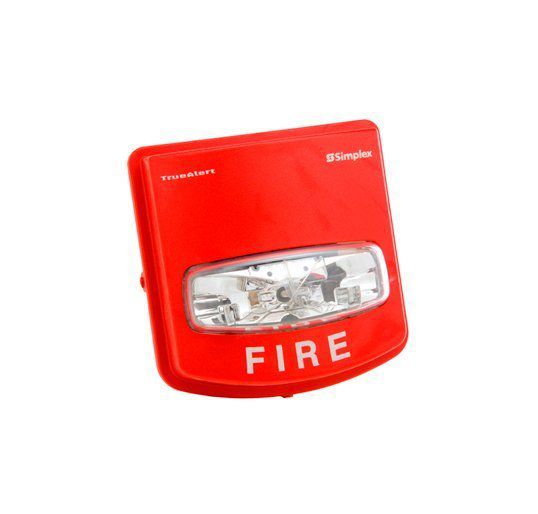

4906-9109 SIMPLEX, HICD VO NON-ADDR WALL RED.

4906-9109 Simplex, Convenient Selection and Installation TrueAlert multi-candela high intensity appliances provide convenient installation to standard electrical boxes. They are both impact and vandal resistant and provide a convenient strobe intensity selection. Since each model can be selected for strobe intensity output, onsite model inventory is minimized and changes encountered during construction can be easily accommodated.

24 VDC high intensity notification appliance common features:

  • Xenon strobe with intensity selectable as 135, 177, or 185 candela; visible selection jumper is secured behind strobe housing.
  • Regulated circuit design ensures consistent flash output and provides controlled inrush current.
  • Control is compatible with Simplex SmartSync two-wire operation.
  • Operation is compatible with ADA requirements.
  • Strobe operation is UL listed to Standard 1971.

Appliances with audible notification (horn):

  • Low current electronic horn with harmonically rich sound output suitable for either steady or coded operation (Temporal or 60 BPM March Time pattern).
  • Horn operation is UL listed to Standard 464.

Strobes provide synchronized flash for use with:

  • Simplex fire alarm control panels and NAC Extenders when selected to provide strobe synchronization or SmartSync two-wire control.
  • Separate strobe Synchronization Modules or SmartSync Control Modules (SCMs) that convert conventional NAC inputs to a Smart Sync output.

SmartSync Two-Wire Control
SmartSync operation mode allows a two-wire circuit to provide the ability to activate both the horn and strobe on the same NAC and then allow the horn to be silenced while the strobe remains flashing. The horn operates as “on-until-silenced” while the strobe operation is “on-until reset.”
