4906-9111 SIMPLEX

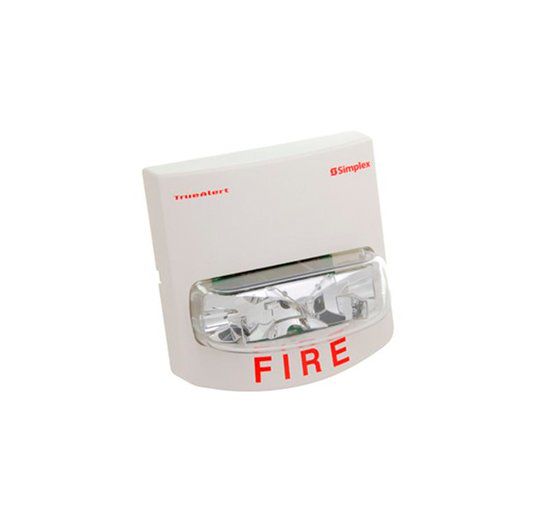

4906-9111 SIMPLEX, HICD VO NON-ADDR WALL WHITE.

4906-9111 Simplex, Convenient Selection and Installation TrueAlert multi-candela high intensity appliances provide convenient installation to standard electrical boxes. They are both impact and vandal resistant and provide a convenient strobe intensity selection. Since each model can be selected for strobe intensity output, onsite model inventory is minimized and changes encountered during construction can be easily accommodated.

24 VDC high intensity notification appliance common features:

• Xenon strobe with intensity selectable as 135, 177, or 185 candela; visible selection jumper is secured behind strobe housing.
• Regulated circuit design ensures consistent flash output and provides controlled inrush current.
• Control is compatible with Simplex SmartSync two-wire operation.
• Operation is compatible with ADA requirements.
• Strobe operation is UL listed to Standard 1971.

Wall Mount

Housings are a one-piece assembly (including lens) that mounts to a single or double gang, or 4″ square standard electrical box. The cover can be quickly removed (a tool is required) and covers are available separately for color conversion.

Strobe Intensity Selection

During installation, a selection plug at the back of the housing determines the desired strobe intensity. An attached flag with black letters on a highly visible yellow background allows the selected intensity to be seen at the side of the strobe lens.

Strobe Application Selection

Proper selection of visible notification is dependent on occupancy, location, local codes, and proper applications of: the National Fire Alarm Code (NFPA 72), ANSI A117.1; the appropriate model building code: BOCA, ICBO, or SBCCI; and the application guidelines of the Americans with Disabilities Act (ADA).

SmartSync Two-Wire Control

SmartSync operation mode allows a two-wire circuit to provide the ability to activate both the horn and strobe on the same NAC and then allow the horn to be silenced while the strobe remains flashing. The horn operates as “on-until-silenced” while the strobe operation is “on-until reset.”

SmartSync Control Sources

SmartSync two-wire control is available from: 4006, 4007ES Hybrid, 4008, 4010, 4010ES, 4100ES, and 4100U Fire Alarm Control Panels (refer to individual product data sheets for more information) 4009 IDNet NAC Extenders (refer to data sheet S4009-0002 ) SmartSync Control Module (SCM) Model 4905-9938 (refer to data sheet S4905-0003 )
