49VO-WRA-A SIMPLEX

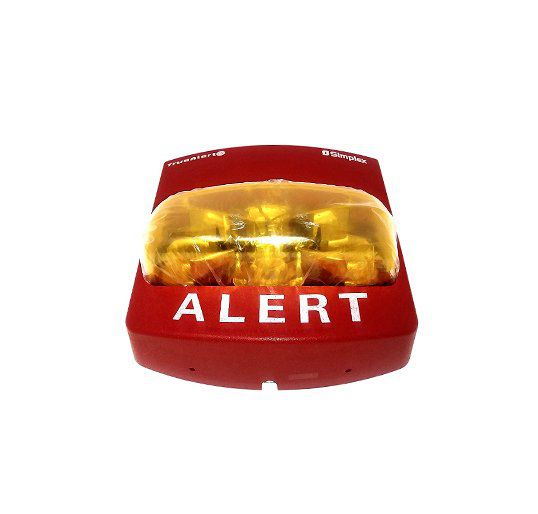

49VO-WRA-A SIMPLEX, VO, WALL RED ALERT AMBER.

49VO-WRA-A Simplex, TrueAlert ES addressable appliances are individually addressed and receive power, supervision, and control signals from a Simplex fire alarm control panel providing IDNAC Signaling Line Circuits (SLCs).

Strobe Application Reference
Proper selection of visible notification is dependent on occupancy, location, local codes, and proper applications of the National Fire Alarm Code (NFPA 72), ANSI A117.1; the appropriate model building code: BOCA,  ICBO, or SBCCI; and the application guidelines of the Americans with Disabilities Act (ADA).

TrueAlert ES Operation Advantage
TrueAlert ES addressable appliances on IDNAC SLCs provide separate visible and audible notification using a single two-wire circuit that also confirms connection to the individual notification appliance’s electronic circuit. This operation increases circuit supervision integrity by providing supervision that extends beyond the appliance wiring connections.

Individually addressed and controlled multi-candela TrueAlert ES Emergency Communications appliances provide:

• Multi-candela xenon strobe with synchronized 1 Hz flash rate and with intensity programmable from the control panel or jumper selected.
• Standard strobe models with amber lens covers, available with ALERT lettering or blank, and with red or white covers, available with 15, 30, 75, 110, or 135 cd output.
• Advanced addressable notification controlled by IDNAC SLCs providing regulated 29 VDC allowing strobes to operate with lower current even under battery backup.
• Emergency Communications appliances are controlled separately from fire alarm appliances but both can be on the same IDNAC SLC; (only one type activates at a time, ether fire alarm or notification, not both).
• Wiring supervision to each appliance allowing “T-tapped” connections for Class B circuits to simplify wiring (Class A circuits require in/out wiring).

Provides TrueAlert ES product features:

• Self-Test Mode using on-board sensors.
• TrueAlert Device Reports at the control panel.
• Magnet Test diagnostics to assist checkout and test.
• Compatibility with ADA requirements.
• Compatibility with legacy TrueAlert addressable systems for upgrade and replacement.
• Appliance LED can be selected to display polling.
• UL listed to Standard 1638 (due to non-white lens); verified by UL testing to provide light dispersion patterns of UL Standard 1971 at rated candela.
• ULC listed to Standard S526.
