AUIRGB4062D1 Infineon

AUIRGB4062D1 Infineon

Código: AUIRGB4062D1 Marca:

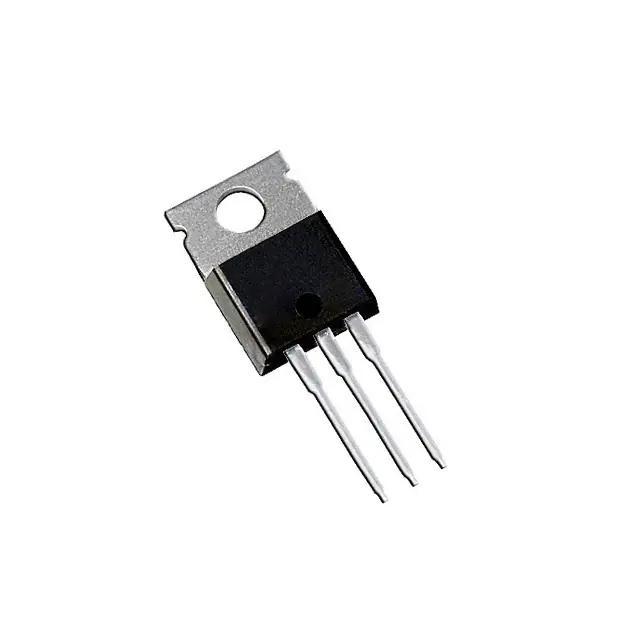

This is manufactured by Infineon Technologies. The manufacturer part number is AUIRGB4062D1. The maximum collector current includes 59 a. It is assigned with possible HTSUS value of 8541.29.0095. The product is rohs3 compliant. Provide switching energy up to 532µj (on), 311µj (off). Features 1.77v @ 15v, 24a. The maximum collector emitter breakdown voltage of the product is 600 v. Td (onoff) value of 19ns90ns. The product has -55°c ~ 175°c (tj) operating temperature range. It carries standard input type. Moreover, the product comes in to-220-3. Features 77 nc gate charge. It has a trr (reverse recovery time) of 102 ns. In addition, it is reach unaffected. Test condition included 400v, 24a, 10ohm, 15v. It is shipped in tube package . Its typical moisture sensitivity level is 1 (unlimited). Features an IGBT trench type. With a current - collector pulsed of [Current - Collector Pulsed (lcm)] . The product is available in through hole configuration. to-220ab is the supplier device package value. The maximum power of the product is 246 w. Moreover, it corresponds to auirgb4, a base product number of the product. The product is designated with the ear99 code number.
