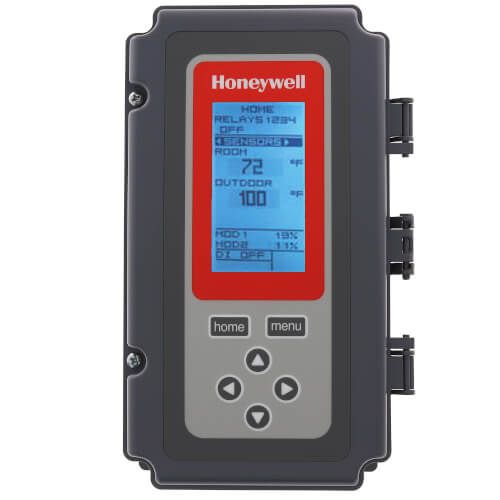

Electronic Temperature Controller with 1 Temperature Input, 1 SPDT Relay, 1 Sensor Included

Electronic Temperature Controller with 1 Temperature Input, 1 SPDT Relay, 1 Sensor Included

The T775 electronic remote temperature controllers are the next generation of commercial and agricultural controls capable of remote sensing of temperature and providing switched and/or proportional outputs to various types of loads.FeaturesSave time on installations with the easy-to-use graphical Interface, large display, and the intuitive programming. Use the time clock scheduler or digital input to control the setback and disable output options to help save energyProtect equipment from freezing or overheating on models with the modulating high or low limit control optionGet pinpoint control on modulating outputs by setting the integral and derivative times (PI or PID) Configure models with reset in a few easy stepsControl floating actuators with floating outputs on select modelsEliminate the need for a separate time delay device and protect equipment with the minimum off time optionSensor 5002159-001 included with non-NEMA 4X modelsSensor T775-SENS-WR included with NEMA-4X models

SpecificationsApplication: On/off or analog controller for applications where electronic accuracy and remote sensing of temperature is required.Type: Standard-NEMA 1 Relay Outputs: 1 SPDTSensor Inputs : 1Voltage: 24 Vac or 120/240 VacFrequency: 60 Hz Frequency: 50 HzRelay Contact Ratings (24 Vac): 10.0A resistiveRelay Contact Ratings (120 Vac):1/2 hp; 9.8 AFL, 58.8 ALR, 125 VA Pilot DutyRelay Contact Ratings (240 Vac): 1/2 hp; 4.9 AFL, 29.4 ALR, 125 VA Pilot DutyDimensions (in.): 8 5/32 in. high x 4 13/32 in. wide x 2 15/16 in. deepSensor Element: 1097 ohms PTC at 77 F (25 C)Number of Sensor Inputs: 1Sensors Included: 50021579-001 (1)Maximum distance to sensor (ft): Up to 1,000 ftSetpoint Temperature Range (F): -40 F to 248 FAccuracy (F): ±1 F at 77 FDifferential Temperature (F): 1 F to 150 FOperating Ambient Temperature Range (F): -40 F to 140 F @ 60 HzReplaces: T775A1001
