FPA-1000-V2 BOSCH

FPA-1000-V2 Fire Alarm Panel, Addressable.

FPA-1000-V2 Fire panel, 2 SLC & networking Advanced analog control panel listed by UL for central station, local, auxiliary, and remote station systems with networking capabilities allowing monitoring of up to 2,000 addressable points in one system.

The FPA‑1000 Analog Addressable Fire Panels are a scalable solution for fire detection. Protect your small office with a single system or connect multiple panels together as your needs grow. Networking capabilities support the monitoring of up to 8 interconnected panels (2,000 addressable points) in one system for campuses or other large commercial environments. The FPA‑1000 panels combine complete built-in Fire Alarm Control Panel (FACP) equipment such as Notification Appliance Circuits (NACs), Signaling Line Circuits (SLCs), relays, power supply, Digital Alarm Communicator Transmitter (DACT), and Ethernet connection with expandability using the option bus or plug‑in boards. The two integrated NACs can be expanded with remote addressable NAC power boosters and programmed with specific activation patterns.

The control panel includes one SLC that supports 254addressable points (254 analog detectors or modules,or 127 analog sounder bases in combination with a suitable detector). The control panel is easily expandable with the  FPE‑1000‑SLC Signaling Line Circuit Plug-in Module, doubling the address points to 508.

• Support for up to 508 points on two analog addressable loops
• Built-in Ethernet connector for web-browser based programming and Conettix Alarm-over-IP communication
• Two on-board NACs and dual-line PSTN DACT
• Peer-to-peer networking of up to eight -V2 panels in a single group
• Suited to a wide range of applications and compatible with the latest Bosch solutions – including 440 Series Multi-criteria detectors

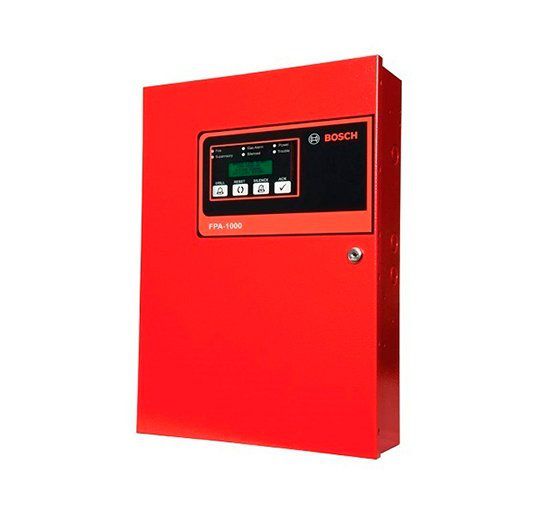

The panel has a compact and solid metal housing with a keyed lock and a removable dead front door to access electronics. It features surface and semi-flush mounting options. On the front of the panel, six lightemitting diodes (LEDs) show Fire, Carbon Monoxide (Gas) Alarm, Power, Supervisory, Silenced, and Trouble conditions. The built‑in keypad can be used for total system control and programming even when wearing fireman gloves. In addition, a large 4‑line by 20‑character alphanumeric LCD display shows programmed device point information. Four keys enable Drill, Reset, Silence, and Acknowledge functions.

FPA-1000-V2 The FPA‑1000 Series panels enable various programming approaches:

• Front panel programming
• On-site programming, using a laptop with the possibility of pre-programming at the office
• Off-site programming, with remote access via Ethernet (browser-based)

Front panel programming provides an auto‑learn function, allowing the installer to configure the system quickly and easily in default mode. Using a local laptop or remote access communication, the programming is carried out by means of a browser‑based user interface. Therefore, no software installation is required. The panel can receive diagnostics from a Web browser running on an internet‑connected PC.

FPA-1000-V2 Point Capacity/Configuration

Each FPA-1000-V2 panel supports up to 508 addresses, 254 per loop. All compatible detectors and modules are addressed using the D5070 Programmer. You can use addresses 1 to 127 for any combination of detectors and modules. SLC devices that support the newest DCP protocol version 2.0 can use addresses 1 to 254. For a listing of devices that can use addresses up to 254, see the SLC Address Assignment section of the FPA-1000 Installation and Operation Guide.Detectors connected to a sounder base can use only addresses 1 to 127. The sounder bases are addressed automatically by the panel, depending on the detector’s address (detector address +127).
