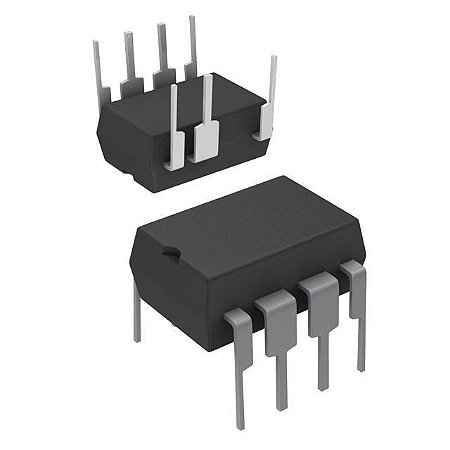

ICE3AR2280JZXKLA1 Infineon

ICE3AR2280JZXKLA1 Infineon

Código: ICE3AR2280JZXKLA1 Marca:
This is manufactured by Infineon Technologies. The manufacturer part number is ICE3AR2280JZXKLA1. It bears start up voltage of 17 v. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. pg-dip-7-1 is the supplier device package value. The product features power and watts of 43 w. The nominal breakdown voltage of 800v. The supply voltage of a bespoke product includes 10.5v ~ 27v. Moreover, the product comes in 8-dip (0.300, 7.62mm), 7 leads. Internal switch options: yes. The switching frequency of the standard product is 100khz. In addition, it is reach unaffected. The product has -40°c ~ 150°c (tj) operating temperature range. Topology includes flyback. Provides 75% duty cycles. It is shipped in tube package . Features isolated output isolation. Its typical moisture sensitivity level is 1 (unlimited). It has a long 26 weeks standard lead time. The product is available in through hole configuration. The product coolmos, coolsetf3r, is a highly preferred choice for users. Fault protection features include over load, over temperature, over voltage. Moreover, it corresponds to ice3ar2280, a base product number of the product. The product is designated with the ear99 code number.
