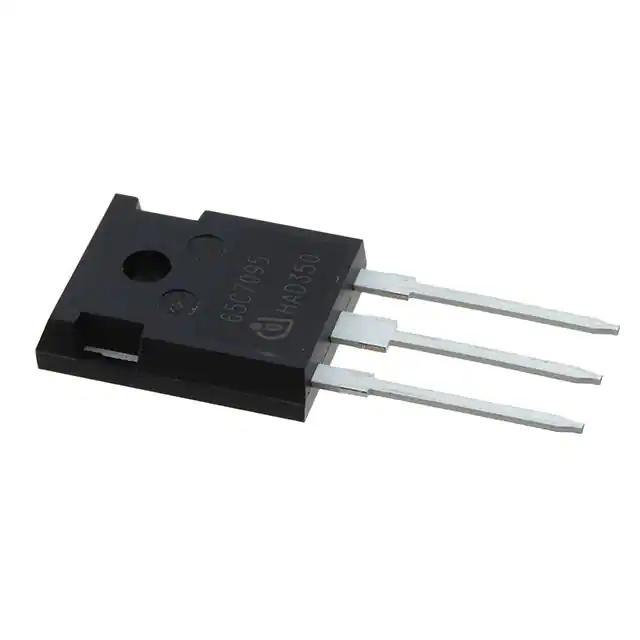

IKW40N120H3FKSA1 Infineon

IKW40N120H3FKSA1 Infineon

Código: IKW40N120H3FKSA1 Marca:
This is manufactured by Infineon Technologies. The manufacturer part number is IKW40N120H3FKSA1. The maximum collector current includes 80 a. It is assigned with possible HTSUS value of 8541.29.0095. The product is rohs3 compliant. Provide switching energy up to 4.4mj. Features 2.4v @ 15v, 40a. The maximum collector emitter breakdown voltage of the product is 1200 v. Td (onoff) value of 30ns290ns. The product has -40°c ~ 175°c (tj) operating temperature range. It carries standard input type. Moreover, the product comes in to-247-3. Features 185 nc gate charge. It has a trr (reverse recovery time) of 355 ns. In addition, it is reach unaffected. Test condition included 600v, 40a, 12ohm, 15v. It is shipped in tube package . Its typical moisture sensitivity level is 1 (unlimited). Features an IGBT trench field stop type. With a current - collector pulsed of [Current - Collector Pulsed (lcm)] . The product is available in through hole configuration. The product trenchstop, is a highly preferred choice for users. pg-to247-3-1 is the supplier device package value. The maximum power of the product is 483 w. Moreover, it corresponds to ikw40n120, a base product number of the product. The product is designated with the ear99 code number.
