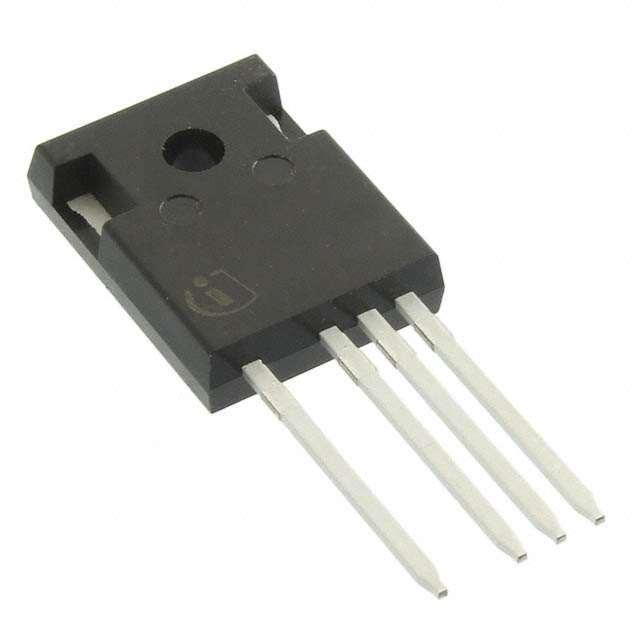

IKY75N120CH3XKSA1 Infineon

IKY75N120CH3XKSA1 Infineon

Código: IKY75N120CH3XKSA1 Marca:
This is manufactured by Infineon Technologies. The manufacturer part number is IKY75N120CH3XKSA1. The maximum collector current includes 150 a. It is assigned with possible HTSUS value of 8541.29.0095. The product is rohs3 compliant. Provide switching energy up to 3.4mj (on), 2.9mj (off). Features 2.35v @ 15v, 75a. The maximum collector emitter breakdown voltage of the product is 1200 v. Td (onoff) value of 38ns303ns. The product has -40°c ~ 175°c (tj) operating temperature range. It carries standard input type. Moreover, the product comes in to-247-4. Features 370 nc gate charge. It has a trr (reverse recovery time) of 292 ns. In addition, it is reach unaffected. Test condition included 600v, 75a, 6ohm, 15v. It is shipped in tube package . Its typical moisture sensitivity level is not applicable. With a current - collector pulsed of [Current - Collector Pulsed (lcm)] . The product is available in through hole configuration. pg-to247-4 is the supplier device package value. The maximum power of the product is 938 w. Moreover, it corresponds to iky75n120, a base product number of the product. The product is designated with the ear99 code number.
