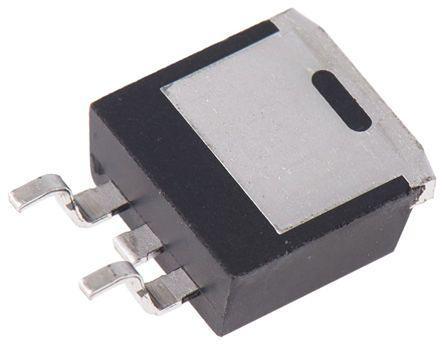

IPB054N06N3GATMA1 Infineon

IPB054N06N3GATMA1 Infineon

Código: IPB054N06N3GATMA1 Marca:
This is N-channel MOSFET 80 A 60 V OptiMOS 3 3-Pin D2PAK manufactured by Infineon. The manufacturer part number is IPB054N06N3GATMA1. While 80 a of maximum continuous drain current. The transistor is manufactured from highly durable si material. Furthermore, the product is 11.05mm wide. The product offers single transistor configuration. It has a maximum of 60 v drain source voltage. The package is a sort of d2pak (to-263). It consists of 1 elements per chip. It has a maximum operating temperature of +175 °c. With a typical gate charge at Vgs includes 61 nc @ 10 v. The product is available in [Cannel Type] channel. Its accurate length is 10.31mm. It contains 3 pins. The product carries enhancement channel mode. The product is available in surface mount configuration. Provides up to 115 w maximum power dissipation. The product optimos 3, is a highly preferred choice for users. It features a maximum gate source voltage of -20 v, +20 v. In addition, the height is 4.57mm. Whereas, the minimum operating temperature of the product is -55 °c. Its forward diode voltage is 1.2v . It provides up to 5.7 mω maximum drain source resistance.
