IPP086N10N3GXKSA1 Infineon

IPP086N10N3GXKSA1 Infineon

Código: IPP086N10N3GXKSA1 Marca:

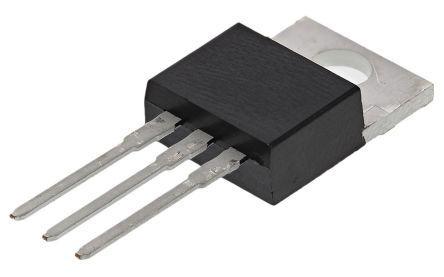

This is N-channel MOSFET 80 A 100 V OptiMOS 3 3-Pin TO-220 manufactured by Infineon. The manufacturer part number is IPP086N10N3GXKSA1. While 80 a of maximum continuous drain current. The transistor is manufactured from highly durable si material. Furthermore, the product is 4.57mm wide. The product offers single transistor configuration. It has a maximum of 100 v drain source voltage. The product carries 3.5v of maximum gate threshold voltage. The package is a sort of to-220. It consists of 1 elements per chip. Whereas its minimum gate threshold voltage includes 2v. It has a maximum operating temperature of +175 °c. With a typical gate charge at Vgs includes 42 nc @ 10 v. The product is available in [Cannel Type] channel. Its accurate length is 10.36mm. It contains 3 pins. The product carries enhancement channel mode. The product is available in through hole configuration. Provides up to 125 w maximum power dissipation. The product optimos 3, is a highly preferred choice for users. It features a maximum gate source voltage of -20 v, +20 v. In addition, the height is 15.95mm. Whereas, the minimum operating temperature of the product is -55 °c. Its forward diode voltage is 1.2v . It provides up to 15.4 mω maximum drain source resistance.
