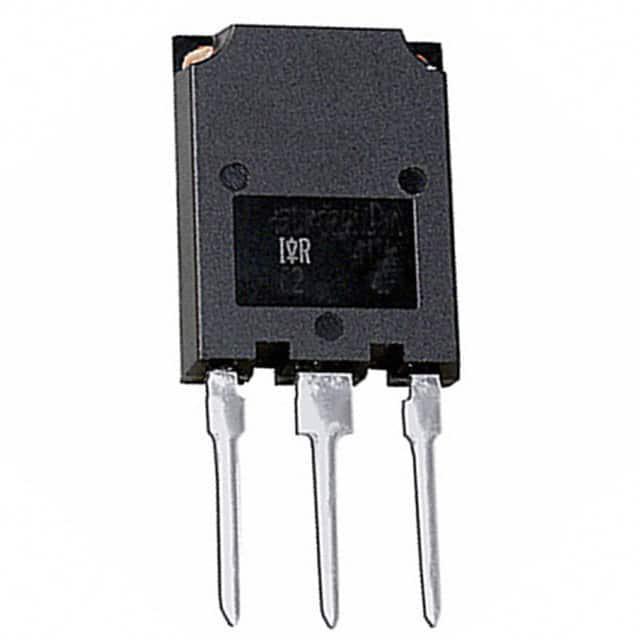

IRG4PSC71UDPBF Infineon

IRG4PSC71UDPBF Infineon

Código: IRG4PSC71UDPBF Marca:
This is manufactured by Infineon Technologies. The manufacturer part number is IRG4PSC71UDPBF. The maximum collector current includes 85 a. It is assigned with possible HTSUS value of 8541.29.0095. The product is rohs3 compliant. Provide switching energy up to 3.26mj (on), 2.27mj (off). Features 2v @ 15v, 60a. The maximum collector emitter breakdown voltage of the product is 600 v. Td (onoff) value of 90ns245ns. The product has -55°c ~ 150°c (tj) operating temperature range. It carries standard input type. Moreover, the product comes in to-274aa. Features 340 nc gate charge. It has a trr (reverse recovery time) of 82 ns. In addition, it is reach unaffected. Test condition included 480v, 60a, 5ohm, 15v. It is shipped in tube package . Its typical moisture sensitivity level is 1 (unlimited). With a current - collector pulsed of [Current - Collector Pulsed (lcm)] . The product is available in through hole configuration. super-247 (to-274aa) is the supplier device package value. The maximum power of the product is 350 w. The product is designated with the ear99 code number.
