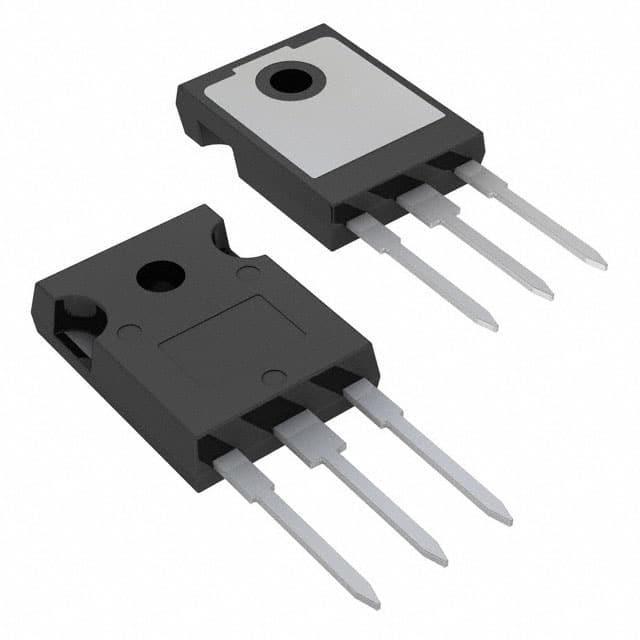

IRGP35B60PDPBF Infineon

IRGP35B60PDPBF Infineon

Código: IRGP35B60PDPBF Marca:
This is manufactured by Infineon Technologies. The manufacturer part number is IRGP35B60PDPBF. The maximum collector current includes 60 a. It is assigned with possible HTSUS value of 8541.29.0095. The product is rohs3 compliant. Provide switching energy up to 220µj (on), 215µj (off). Features 2.55v @ 15v, 35a. The maximum collector emitter breakdown voltage of the product is 600 v. Td (onoff) value of 26ns110ns. The product has -55°c ~ 150°c (tj) operating temperature range. It carries standard input type. Moreover, the product comes in to-247-3. Features 160 nc gate charge. It has a trr (reverse recovery time) of 42 ns. In addition, it is reach unaffected. Test condition included 390v, 22a, 3.3ohm, 15v. It is shipped in tube package . Its typical moisture sensitivity level is 1 (unlimited). Features an IGBT npt type. With a current - collector pulsed of [Current - Collector Pulsed (lcm)] . The product is available in through hole configuration. to-247ac is the supplier device package value. The maximum power of the product is 308 w. Moreover, it corresponds to irgp35, a base product number of the product. The product is designated with the ear99 code number.
