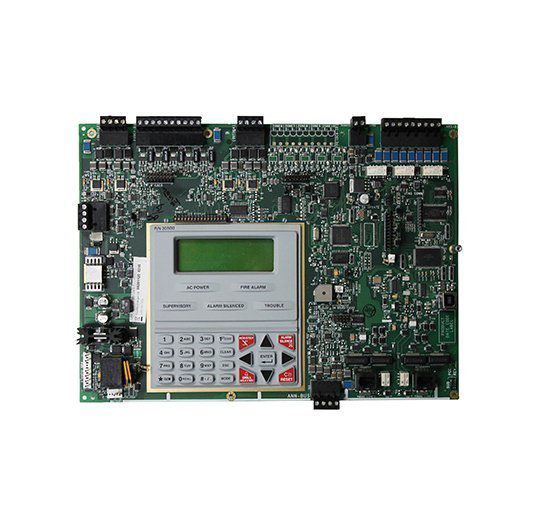

SFP-5UD NOTIFIER, NOTIFIER 5 ZONE CONV FIRE..CONTROL PANEL.
SFP-5UD is a five-zone FACP (Fire Alarm Control Panel). That control panel provide reliable fire signaling protection for small to medium-sized commercial, industrial, and institutional buildings. FACPs is compatible with System Sensor’s microprocessor-based i3 series detectors. That conventional smoke detector can transmit a maintenance trouble signal to the FACP indicating the need for cleaning and a supervisory “freeze” signal when the ambient temperature falls below the detector rating. Additionally,the SFP-5UD is compatible with conventional input devices such as two- and four-wire smoke detectors, pull stations, waterflow devices, tamper switches, and other normally-open contact devices.
Outputs include four NACs (Notification Appliance Circuits), three programmable Form-C relays (factory programmed for Alarm, Trouble, and Supervisory) and 24 VDC special application resettable and nonresettable power outputs. The FACPs supervise all wiring, AC voltage, battery level and telephone line integrity.
- Listed to UL Standard 864, 9th edition.
- Built-in DACT (Digital Alarm Communicator/Transmitter).
- Style B (Class B) IDC (Initiating Device Circuit).
– SFP-5UD – five IDCs.
- Style Y (Class B) NAC (Notification Appliance Circuit) – special application power.
– SFP-5UD – four NACs.
- Notification Appliances may be programmed as
– Silence Inhibit.
– Auto-Silence.
– Strobe Synchronization for System Sensor, Wheelock, Gentex, Faraday, or Amseco devices.
– Selective Silence (horn-strobe mute).
– Temporal or Steady Signal.
– Silenceable or Nonsilenceable.
- Optional N-CAC-5X Style Z (Class A) Converter Module for NACs and IDCs (2 required for SFP-10UD).
- Form-C Relays for Alarm, Trouble and Supervisory – Contact Ratings 2.0 A@ 30 VDC or 30 VAC (resistive).
- 3.0 A total system current for SFP-5UD.
- Optional Dress Panel DP-51050 (red)
- Optional Dress Panel DP-51050B (black).
- Optional Trim Ring TR-CE/-B for semi-flush mounting.
- 24 volt operation.
- Low AC voltage sense.
- larm Verification.
- PAS (Positive Alarm Sequence).
- Automatic battery trickle charger.
- Up to eight ANN-BUS annunciators:
– Optional 8 zone Relay Module N-ANN-RLY.
– Optional LED Annunciator Module N-ANN-LED,
– Optional Remote LCD Annunciator N-ANN-80.
– Optional Remote Printer Gateway N-ANN-S/PG.
– Optional LED Annunciator Driver N-ANN-I/O.
- Optional 4XTM module (conventional reverse polarity/city box transmitter).
