SGP15N120XKSA1 Infineon

SGP15N120XKSA1 Infineon

Código: SGP15N120XKSA1 Marca:

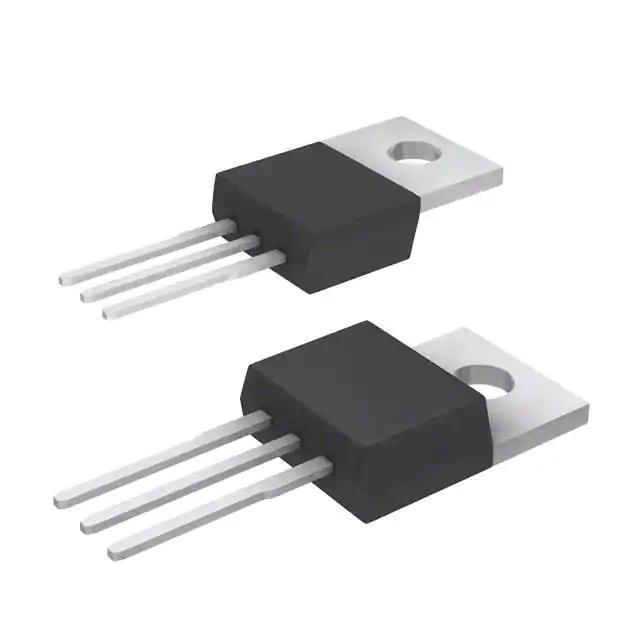

This is manufactured by Infineon Technologies. The manufacturer part number is SGP15N120XKSA1. The maximum collector current includes 30 a. It is assigned with possible HTSUS value of 8541.29.0095. The product is rohs3 compliant. Provide switching energy up to 1.9mj. Features 3.6v @ 15v, 15a. The maximum collector emitter breakdown voltage of the product is 1200 v. Td (onoff) value of 18ns580ns. The product has -55°c ~ 150°c (tj) operating temperature range. It carries standard input type. Moreover, the product comes in to-220-3. Features 130 nc gate charge. In addition, it is reach unaffected. Test condition included 800v, 15a, 33ohm, 15v. It is shipped in tube package . Its typical moisture sensitivity level is 1 (unlimited). Features an IGBT npt type. With a current - collector pulsed of [Current - Collector Pulsed (lcm)] . The product is available in through hole configuration. pg-to220-3-1 is the supplier device package value. The maximum power of the product is 198 w. Moreover, it corresponds to sgp15n, a base product number of the product. The product is designated with the ear99 code number.
