Especificações:
[Ue] Rated Operational Voltage <= 1000 V AC 50/60 Hz
<= 460 V DC
[Ie] Rated Operational Current 250 A (at <104 °F (40 °C)) at <= 440 V AC AC-1
150 A (at <131 °F (55 °C)) at <= 440 V AC AC-3
Motor Power Kw
- 65 kW 1000 V AC 50/60 Hz
- 75 kW 380...400 V AC 50/60 Hz
- 80 kW 415 V AC 50/60 Hz
- 80 kW 440 V AC 50/60 Hz
- 90 kW 500 V AC 50/60 Hz
- 40 kW 220...240 V AC 50/60 Hz
- 100 kW 660...690 V AC 50/60 Hz
Auxiliary Contact Composition: 1 NO
[Uimp] Rated Impulse Withstand Voltage: 8 kV
Overvoltage Category III
[Ith] Conventional Free Air Thermal Current: 250 A (at 104 °F (40 °C))
Irms Rated Making Capacity: 1500 A AC conforming to IEC 60947-4-1
Rated Breaking Capacity 1200 A conforming to IEC 60947-4-1
[Icw] Rated Short-Time Withstand Current
- 1200 A 104 °F (40 °C) - 10 s
- 700 A 104 °F (40 °C) - 30 s
- 600 A 104 °F (40 °C) - 1 min
- 450 A 104 °F (40 °C) - 3 min
- 350 A 104 °F (40 °C) - 10 min
Associated Fuse Rating 160 A aM at <= 440 V
250 A gG at <= 440 V
Average Impedance 0.35 mOhm - Ith 250 A 50 Hz
[Ui] Rated Insulation Voltage 1000 V IEC 60947-4-1
1500 V VDE 0110 group C
Power Dissipation Per Pole: 8 W AC-3
Interlocking Type: Mechanical
Mounting Support: Plate
Protective Treatment: TH

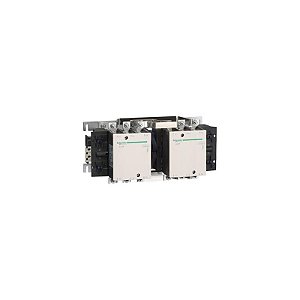

LC2F150
